BLACKVUE DR770-BOX 3 CAMERA SYSTEM WITH CENTRAL RECORD BOX 1080 HD DASHCAM 64 GB

BlackVue DR770X Box features front, rear and interior protection for your vehicle, powered by Sony image sensors for best image quality under any light. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.

The DR770X Box is a triple-channel dash cam with BlackVue Cloud connectivity.

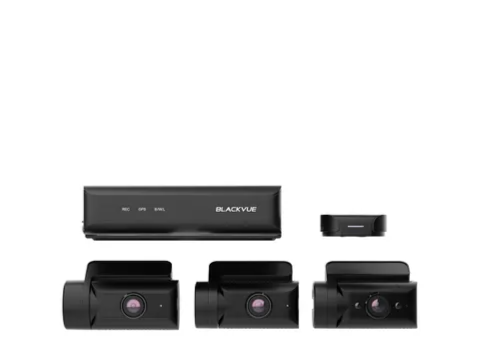

The compact front, interior and rear cameras connect via coaxial video cable to the lock-protected “Box” recording unit,
which can be stowed away in a glove compartment for maximum stealth and security.
All cameras use Full HD Sony STARVIS™ image sensors for best image quality under any light,
and the interior camera can record even in full darkness with its infrared LEDs.

Wireless “SOS” button included to trigger Manual Event recordings.
Native Parking Mode support via included hardwiring cable.

View and download videos easily with the BlackVue App.
Cloud support via Wi-Fi hotspot or optional LTE Connectivity module.

• Three Cameras and Secure Recording Box
• Seamless Pairing with the BlackVue App
• GPS, Wi-Fi and Optional LTE
• Ultrawide Infrared Interior Camera
• Built-in Speaker, Impact Sensor and Motion Detection
• SOS Button
• BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
• Built-in Tamper-Proofing

Highlights
Full HD  + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module

Product Dimensions
Main unit : Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g
Front : Black / Length 62.5 mm x Width 34.3 mm x Height 34.0 mm / 43 g
Rear : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 33 g
Interior IR : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g
Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g

Rear Camera Connection
Coaxial cable

Memory Support
microSD card up to 256GB

Parking Mode
YES (with  3-wire hardwiring cable – included)

Parking Mode Event Voice Notifications
YES

Imaging Sensor
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Viewing Angle
Front : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear : Diagonal 116°, Horizontal 97°, Vertical 51°
Interior IR : Diagonal 180°, Horizontal 150°, Vertical 93°

Resolution Frame Rate
Front / Rear / Interior IR

Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps
*Frame rate may vary during Wi-Fi streaming.

Video Codec
H.264 (AVC)

Image Quality and Bitrate Front/Rear
Front / Rear / Interior

Highest(Extreme): 16 + 10 + 10 Mbps

Highest: 12 + 10 + 10 Mbps

High 10 + 8 + 8 Mbps

Normal: 8 + 6 + 6 Mbps

Format Free
YES (Adaptive)

Event File Overwrite Protection
YES (up to 51)

SD Card Failure Alert
YES

Wi-Fi
Built-in (802.11 b.g.n)

Cloud Compatible
YES

GPS
External (Dual Band : GPS, GLONASS)

Microphone
Built-in

Speaker
Built-in

Impact Sensor
3-Axis Acceleration Sensor

Rear Camera IR Illumination
Interior IR : 940nm (2 Infrared (IR) LEDS)

Button
EB-1 button :

Press the button – manual recording.

Backup Battery
Built-in supercapacitor

Input Power
DC 12V-24V (3 pole DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)

Power Consumption Hour
Normal Mode (GPS On / 3CH) : Avg. 730mA / 12V
Parking Mode (GPS Off / 3CH) : Avg. 610mA / 12V
* Approx. 40mA increase in current when Interior Camera IR LEDs are ON.
* Approx. 60mA increase in current when Rear Truck Camera IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
