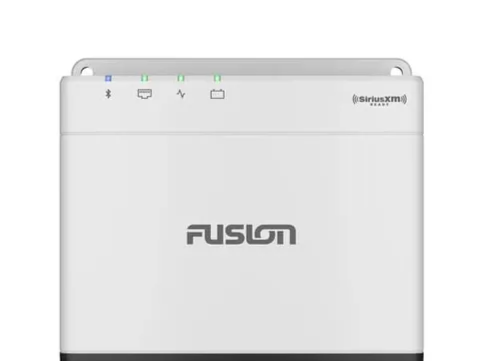

FUSION APOLLO WB670 WHITE BOX MARINE ENTERTAINMENT SYSTEM

THE SUM OF AUDIO INNOVATION REIMAGINED
The Apollo WB670 marine stereo inherits key audio innovations and technological brilliance from Apollo RA670, reengineered in a compact, space-saving form factor designed to simplify dash space.

• Custom audio profiles for each zone on your boat to deliver superior quality audio.
• Audio streaming with Wi-Fi technology provides high-quality audio with a faster data transfer rate
• Experience seamless high-quality audio streaming from your music app the AirPlay® 2 software feature
• Enjoy the freedom of musical choice with Fusion’s PartyBus™-Network technology
• Multi-Zone™ Technology gives you control of three separate audio zones
• Control your music from a compatible multifunction display (MFD), smart device or Garmin watch

General

Physical dimensions Stereo Dimensions (H x W x D): 5.1″ x 5.1″ x 2.17″ (130 x 130 x 55 mm)
Weight 16.75 oz (475 g)
Power input 10.8-16 VDC
Operating temperature range 32° to 122° F (0° to 50° C)
Current (max.) 15 A
NMEA 2000 LEN 1 (50 mA)
Bluetooth wireless range Up to 30 ft. (10 m)
ANT wireless range Up to 10 ft. (3 m)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance 5.9″ (150 mm)

Stereo Features
Built-in amplifier Class-D (2 Ohm stereo-stable)
Peak power 280 W
Rated power output (2 Ohm) 43 W rms x 4 @ 14.4 V input < 10% THD
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing Yes (with preconfigured DSP profiles)
PartyBus™-Network capabilities Yes (wired)
Fusion-Link™ control Yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology 3 zones
Built-in Wi-Fi No
Bluetooth wireless technology Yes
ANT wireless technology Yes
SiriusXM-ready Yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready Yes (requires DAB100A antenna module)
Optical audio input Yes
NRX remote compatibility Yes
Multi-language interface
Software updates Over-the-air software updates via the Fusion-Link app*
USB
Warranty 3 years

Sources
Sources AM / FM / Bluetooth / Apple AirPlay 2* / digital optical input / USB audio / iPhone / iPod / AUX x1 / UPnP* / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only)
Connectivity
Auxiliary input One RCA input (AUX)
Optical audio input One digital optical input (SPDIF) port
Ethernet One Ethernet port
NMEA 2000 One NMEA 2000 port
USB 2.0 One USB 2.0 port
SiriusXM satellite radio One SiriusXM port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio One Motorola antenna connector port
Speaker 4 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer) 3 zones (requires external amplification)
Line out 3 (1 x L + R per zone, requires external amplification)
Subwoofer out 1 x mono output (requires external amplification)
